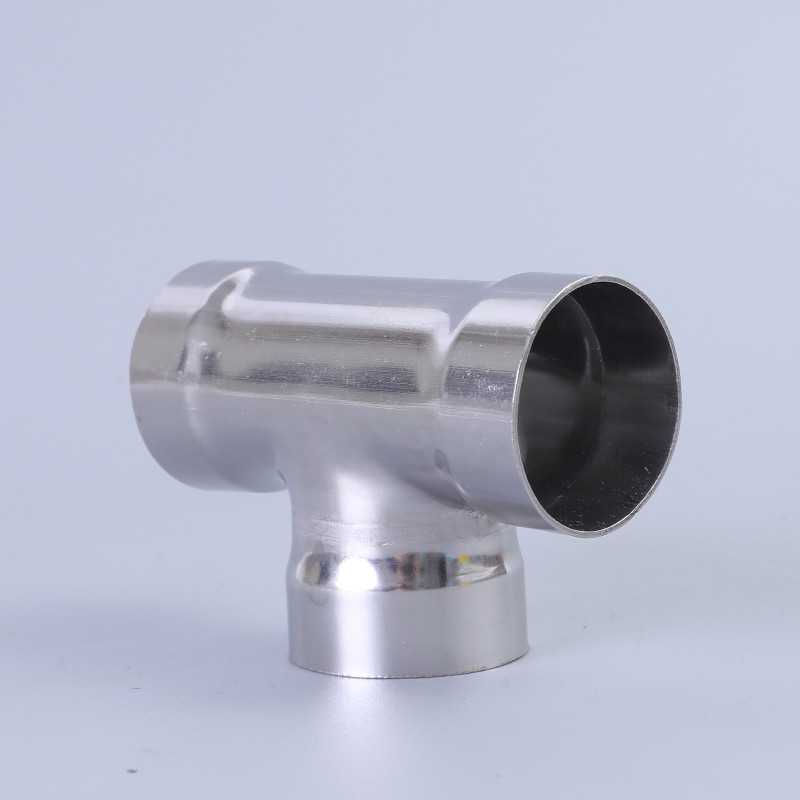

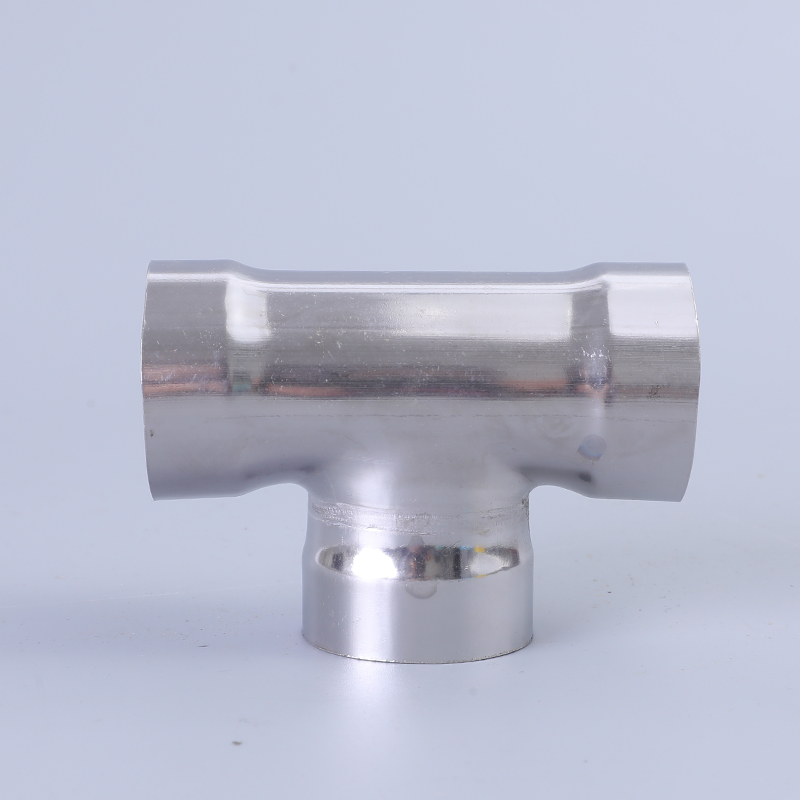

Socket welded equal diameter tees are pipe fittings used for branch connections of pipelines. Their three port diameters are the same and they are connected by socket welding. They are suitable for high-pressure and precise industrial environments.
Material : carbon steel (such as Q235, 20#), stainless steel (such as 304, 316L), alloy steel (such as 15CrMo), etc.
Pressure rating : 3000LB, 6000LB, 9000LB or SCH80, SCH160, etc.
Specification : DN6 to DN100, commonly DN15-DN50.
Standards : national standard GB/T14383, American standard ASME B16.11, etc.
Material : carbon steel (such as Q235, 20#), stainless steel (such as 304, 316L), alloy steel (such as 15CrMo), etc.
Pressure rating : 3000LB, 6000LB, 9000LB or SCH80, SCH160, etc.
Specification : DN6 to DN100, commonly DN15-DN50.
Standards : national standard GB/T14383, American standard ASME B16.11, etc.
| Equal diameter tee | |||
Nominal diameter (mm) | L1 (mm) | L2 (mm) | H (mm) |
| 15 | 38 | 19 | 6.5 |
| 20 | 48 | 24 | 8 |
| 25 | 58 | 29 | 10 |
| 32 | 74 | 37 | 12 |
| 40 | 90 | 45 | 14 |
| 50 | 114 | 57 | 17 |
| 65 | 140 | 70 | 20 |
| 80 | 172 | 86 | 25 |
| 100 | 210 | 105 | 30 |
| 125 | 258 | 129 | 40 |
| 150 | 286 | 143 | 40 |
| 200 | 356 | 178 | 45 |
| 250 | 432 | 216 | 60 |
