The pressure gauge is a commonly used instrument for measuring fluid pressure in industry. It utilizes the deformation of an elastic element to drive the pointer to display the value, and is widely applied in fields such as petroleum, chemical engineering, and machinery manufacturing.
working principle
The core of a pressure gauge lies in its elastic element (such as Bourdon tube or capsule), which deforms under pressure. The mechanical mechanism amplifies the displacement, and ultimately, the pressure value is indicated by the pointer.
main types
Mechanical type: such as spring-loaded pressure gauge, with a measurement range covering from -0.1 MPa to 700 MPa and an accuracy level of 1.0.
Digital type: such as intrinsically safe pressure gauges for mining, with high accuracy, suitable for special environments such as coal mines.
Purchase and use
Selection: Choose based on the properties of the medium, pressure range, accuracy requirements, and environmental conditions (such as corrosion resistance and seismic resistance).
Maintenance: Regularly check the flexibility of the pointer and the clarity of the dial, avoid using beyond the measuring range, and pay attention to environmental protection.
| Number | Name | Model | Description |

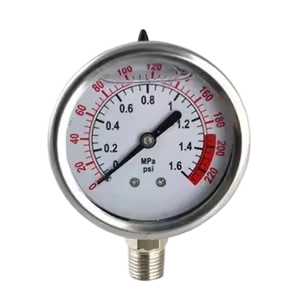

| 1 | Pressure gauge | Y-100(Vertical) | 0-1.6mpa(Vertical), dial 100mm, M20X1.5(External) |

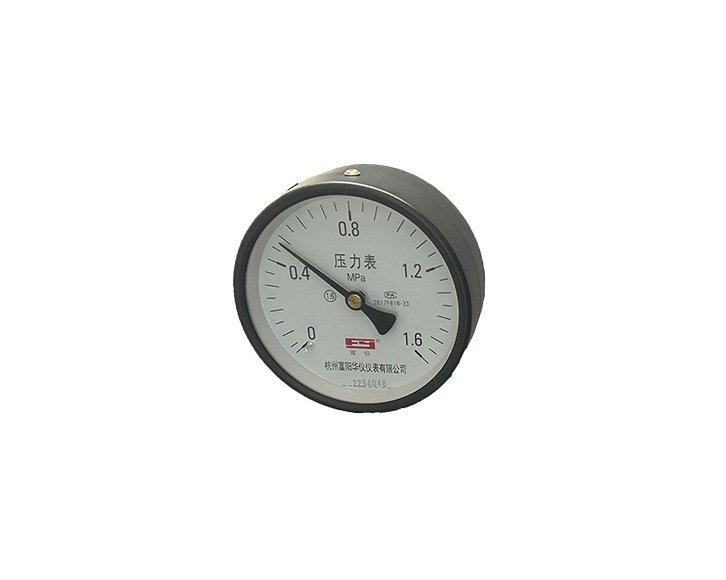

| 2 | Pressure gauge | Y-100(Back) | 0-1.6mpa(Back), dial 100mm, M20X1.5(External) |
| 3 | Pressure gauge | Y-60(Vertical) | 0-1.6mpa(Vertical), dial 60mm, 1/2(External) |
| 4 | Pressure gauge | Y-60(Back) | 0-1.6mpa(Back), dial 60mm, 1/2(External) |
| 5 | Vacuum pressure gauge | Y-60ZT (Back) | 1/2(External), -0.1～0MPa(Back), dial 60mm |
| 6 | Vacuum pressure gauge | Y-100ZT (Back) | M20X1.5(External), -0.1～0MPa(Back), dial 100mm |
