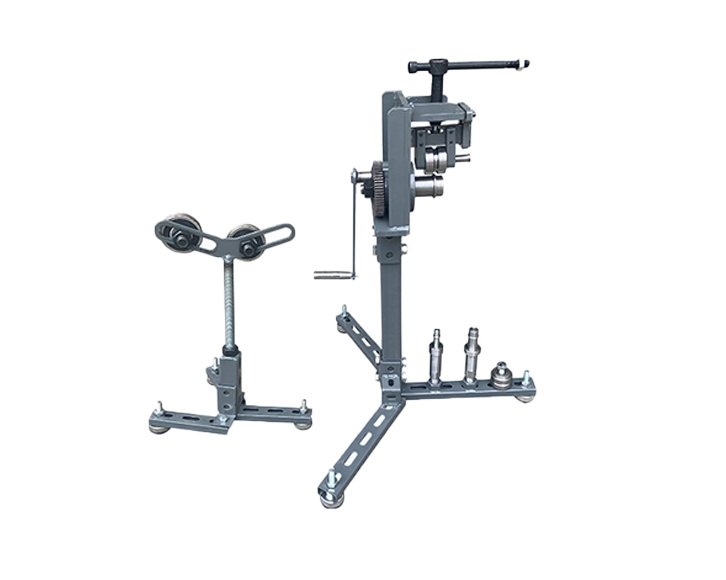

The tube forming machine consists of two parts: the machine body and the support. The support balances the tube, while the core component of the machine body is the concave and convex mold.
Key points for using a pipe crimping machine:
(1) Use a support to place the pipe horizontally.
(2) The machine body must not shake during pipe crimping.
(3) Pipe crimping depth: Generally, for DN50 (inclusive) and below, the pipe crimping depth is 1.5mm to 2mm; for DN63 to DN200, the crimping depth is 2.5mm to 3mm.
(4) When crimping pipes, the crimped convex shape must be kept on a single plane.
Key points for using a pipe crimping machine:
(1) Use a support to place the pipe horizontally.
(2) The machine body must not shake during pipe crimping.
(3) Pipe crimping depth: Generally, for DN50 (inclusive) and below, the pipe crimping depth is 1.5mm to 2mm; for DN63 to DN200, the crimping depth is 2.5mm to 3mm.
(4) When crimping pipes, the crimped convex shape must be kept on a single plane.
| Nominal diameter (DN) | 20 | 25 | 40 | 50 | 63 | 80 | 100 | 125 | 148 | 200 |
| punch | No. 1 punch | No. 2 punch | No. 3 punch | |||||||
| Die | Die No. 1 | Die No. 2 | ||||||||
