This device boasts a simple structure and convenient disassembly and assembly, offering uniform support and effectively reducing vibration and noise. It is suitable for oil, water, and gas medium pipeline systems in industries such as metallurgy, petroleum, chemical, shipbuilding, and electric power. Its enclosed design tightly wraps around the pipeline, preventing displacement or sagging, while adapting to humid or corrosive environments through material and process optimization.

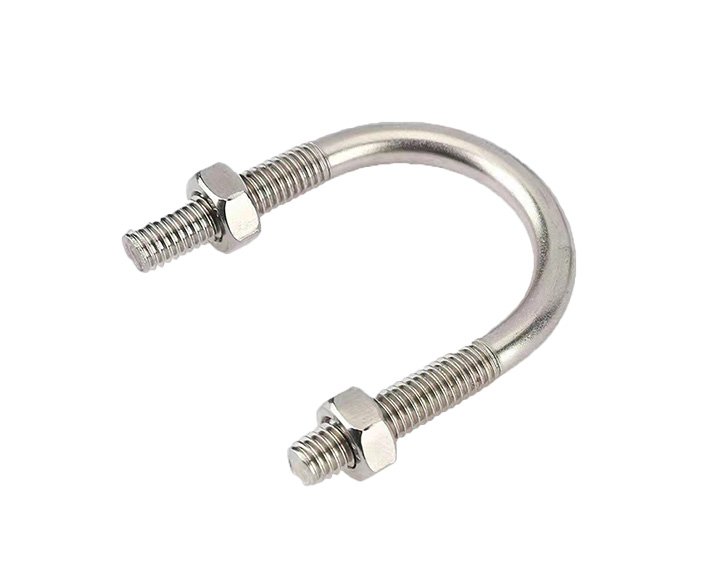

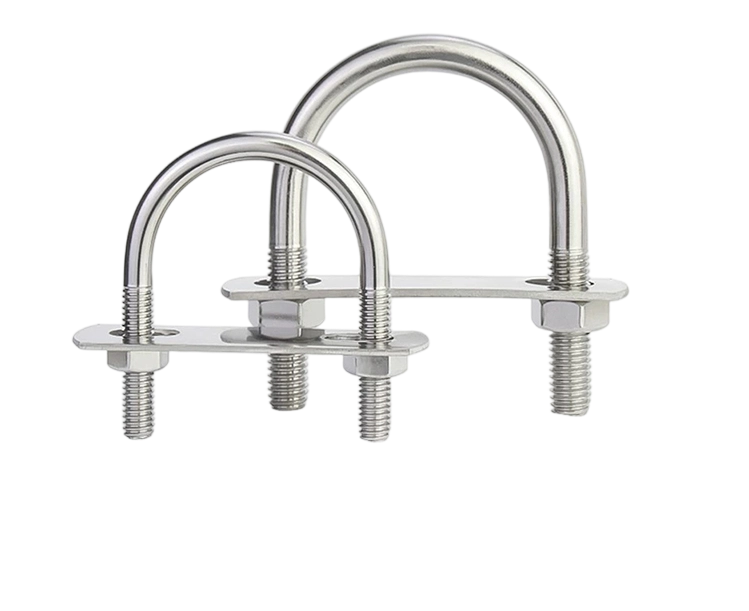

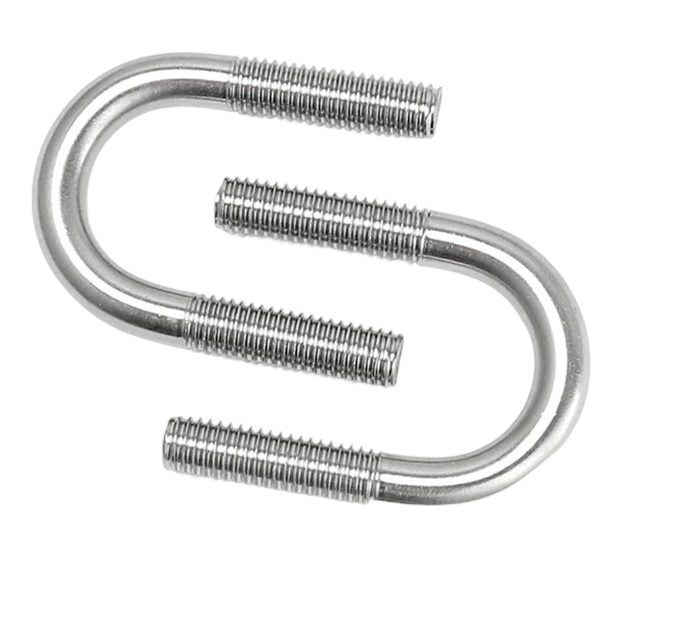

The U-shaped pipe clamp is a U-shaped support device primarily used for the fixation and support of pipelines. Its basic structure consists of a clamp body (U-shaped metal strip) and components such as nuts, which are clamped together through bolt connections. During installation, it is necessary to ensure that the components are dry and free of debris to avoid affecting the fixation effect.
Material and specifications: U-shaped pipe clamps come in a variety of materials, commonly including carbon steel (such as Q235A and Q345B) and stainless steel (such as 304 and 316L). Surface treatments include galvanizing, blackening, or hot-dip galvanizing to enhance corrosion resistance. The product specifications cover a range from light to heavy duty series, with a U-shaped width ranging from 22 to 328mm and a wire diameter of 6.0 to 16.0mm, suitable for engineering needs with pipe diameters ranging from 22 to 630mm.
Application Scenario: U-shaped pipe clamps are widely used for industrial pipeline fixation, such as in ship piping systems that need to meet ISO specifications to absorb vibration stress, or in construction, HVAC, and other fields to ensure pipeline stability. In production, stamping and sheet metal processes are employed, and certain patented technologies can enhance forming precision and batch efficiency.
Model |
DN63 |
DN80 |
DN100 |
DN125 |
DN148 |
DN200 |
DN273 |
