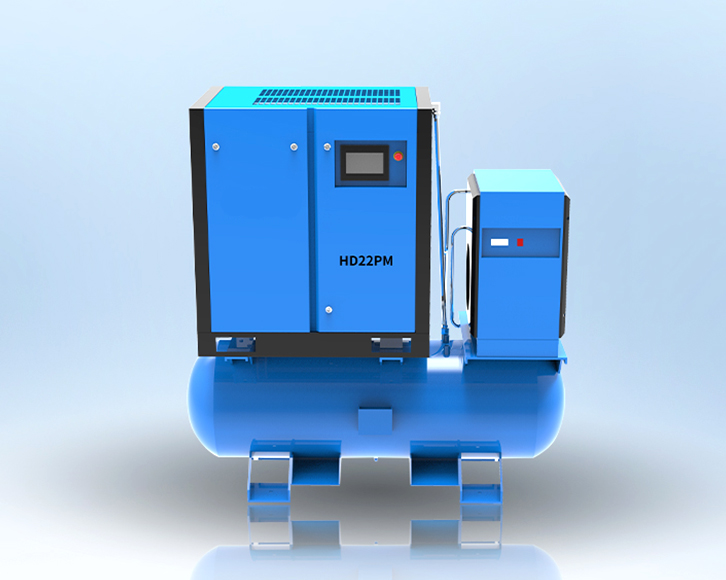

Laser Cutting Dedicated Air Compressor 7.5~37kw
Model: HD Series
Pressure: 1.55-2.0MPa
Power: 7.5-37kw
Air Volume: 0.6-12.5m³/min
Weight: See Catalog
Dimensions: Consult Customer Service
Brand: Desu
Integrated design, easy to install
Microcomputer control system, multiple protection design, fault early warning
Permanent magnet frequency conversion, energy saving 30-40%
Laser cutting dedicated screw-in air compressor,Convenient and energy-efficient, clean Luxurious configuration, external post-treatment,Large-capacity air storage tank, integrated design
Laser cutting dedicated screw-in air compressor
Convenient and energy-efficient, clean Luxurious configuration, external post-treatment,Large-capacity air storage tank, integrated design,Convenient Energy-efficient and clean,Luxury configuration with external after-treatment system,Large-capacity integrated gas storage tank design
| model | Installed power | Exhaust pressure | Traffic FAD | Exhaust port size | weight | size | |
| Standard model | Standard model | Standard model | |||||
| KW | MPa | m³min | G thread/DN flange | Standard model | L/W/H (mm) | ||
| HD7.5PM | 7.5 | 1.55 | 0.6 | G1/2 | 180/355 | 800/650/860/All-in-one 1500/670/1430 | |
| HD11PM | 11 | 1.6 | 0.9 | G3/4 | 300/570 | 1000/750/1000/All-in-one 1800/750/1770 | |
| HD15PM | 15 | 1.6 | 1.2 | G3/4 | 320/590 | 1000/750/1000/All-in-one 1800/750/1770 | |
| 2.0 | 1.0 | ||||||
| HD22PM | 22 | 1.6 | 2.0 | G1 | 420/690 | 1070/850/1140/All-in-one PC 1800/850/1930 | |
| 2.0 | 1.7 | ||||||
| HD30PM | 30 | 1.6 | 2.5 | G1 | 420/690 | 1070/850/1140/All-in-one PC 1800/850/1930 | |
| 2.0 | 2.2 | ||||||
| HD37PM | 37 | 1.6 | 3.4 | G1 G1/2 | 600/930 | 1200/1000/1390/All-in-one 1990/980/1970 | |
| 2.0 | 3.2 | ||||||
| HD45PM | 45 | 1.6 | 4.0 | G1 G1/2 | 650 | 1500/1000/1350 | |
| 2.0 | 3.5 | ||||||
| HD55PM | 55 | 1.6 | 5.9 | G2 G1/2 | 900 | 1700/1210/1550 | |
| 2.0 | 4.2 | ||||||
| HD75PM | 75 | 1.6 | 8.1 | G2 G1/2 | 1050 | 1700/1210/1550 | |
| 2.0 | 6.5 | ||||||
| HD90PM | 90 | 1.6 | 9.5 | G2 G1/2 | 1200 | 1700/1210/1550 | |
| 2.0 | 8.5 | ||||||
| HD110PM | 110 | 1.6 | 12.5 | DN80 | 2500 | 2600/1900/1890 | |
| 2.0 | 9.8 | ||||||
| *Our company is committed to continuous product improvement and reserves the right to make design changes. Configuration parameters may change without prior notice. | |||||||
