Water-lubricated medium-pressure screw air compressor
Model: HMA series
Pressure: 2-4MPa
Power: 37-450kw
Air volume: 2.83-61.4m³/min
Weight: See sample
Dimensions: Consult customer service
Brand: Desu

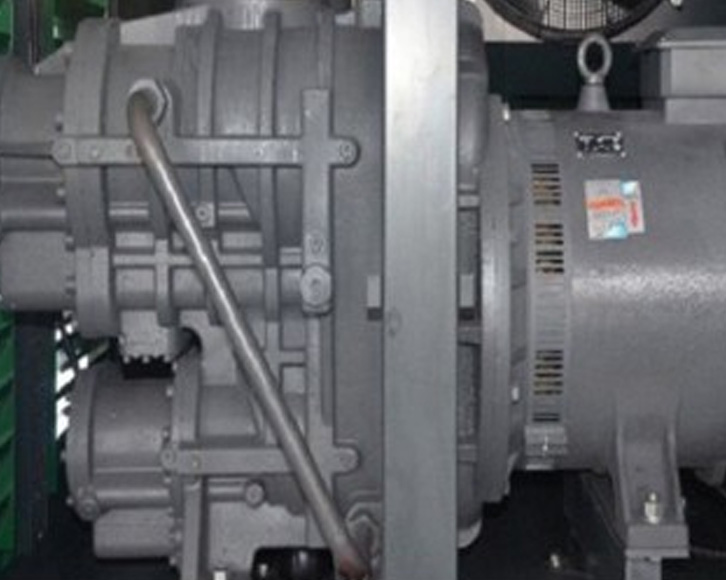

Two-stage compressor screw compressor
Optimized compression ratio and bearing design for longer lifespan
Stage compression results in low vibration, low noise, and high reliability
Stage compression reduces internal leakage, improves volumetric efficiency, reduces bearing load, and extends compressor lifespan

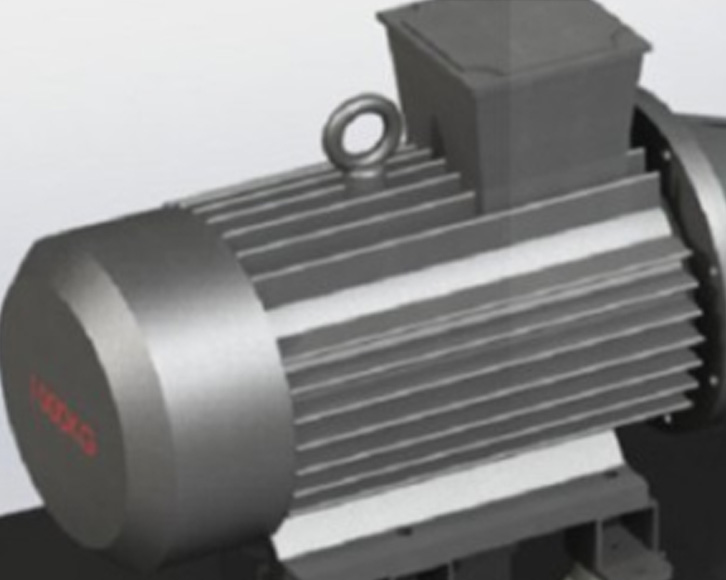

High-efficiency motor
High starting torque, standard phase sequence protection to prevent reverse rotation
Insulation class F, protection class IP54, worry-free operation even in harsh conditions
SKF bearings, long service life,Contributes to improved system stability and effective flow control
Ensures normal start-up and operation of the air compressor
High-definition display, intuitive interface, user-friendly menu design
Comprehensive protection functions to minimize faults caused by short circuits, locked rotors, phase loss, overload, etc.
High-efficiency intake valve
Intelligent control system
Large diameter, low pressure drop
Contributes to improved system stability and effective flow control
Contributes to improved system stability and effective flow control
Ensures normal start-up and operation of the air compressor
High-definition display, intuitive interface, user-friendly menu design
Comprehensive protection functions to minimize faults caused by short circuits, locked rotors, phase loss, overload, etc.
Uses high-end, well-known electrical control components, easy to operate, convenient to query and maintain

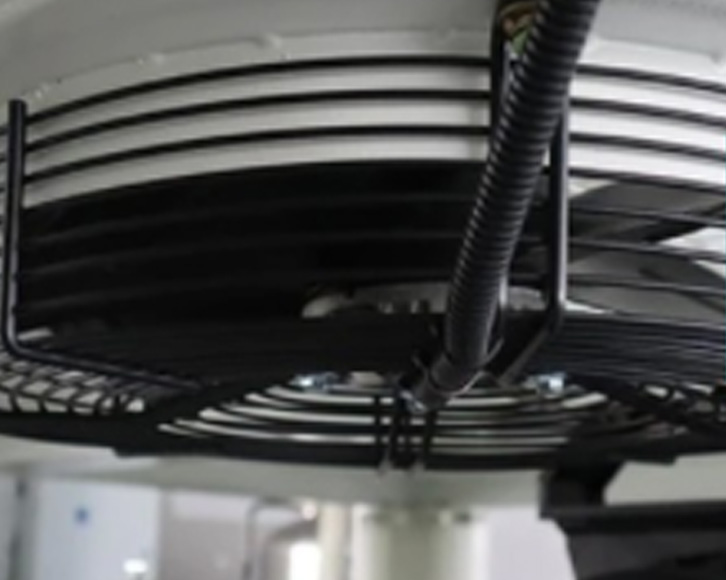

High-efficiency fan
High heat dissipation efficiency, capable of continuous 24-hour operation even in high-temperature and high-humidity environments.
Designed for efficient, eco-friendly compressed air supply, this water-lubricated medium-pressure screw compressor combines advanced screw technology with water-based lubrication to deliver clean, oil-free airflow (critical for sensitive applications). Operating at medium pressures (typically compatible with 8-13 bar(e) ranges), it balances robust performance with low maintenance: the water-lubrication system reduces friction, lowers operating temperatures, and eliminates oil contamination risks—making it ideal for industries like food processing, pharmaceuticals, or electronics manufacturing.
| Technical parameters of permanent magnet variable frequency water-lubricated (medium pressure) screw compressor | |||||||||
| model Model | Work pressure Working pressure MPa | Displacement F ·A ·D m3/min | motor power Motor Power kw | External dimensions Dimension (mm) | model Model | Work pressure Working pressure MPa | Displacement F ·A ·D m3/min | motor power Motor Power kw | External dimensions Dimension (mm) |
| GMA(W)37VSDN | 2.0 | 4.6 | 37 | 2800×1600x1700 | GMW185VSDN | 2.0 | 22.75 | 185 | 4200×2000×2000 |
| 2.5 | 4.1 | 2.5 | 21.2 | ||||||
| 3.0 | 3.65 | 3.0 | 19.6 | ||||||
| 3.5 | 3.24 | 3.5 | 18.0 | ||||||
| 4.0 | 2.83 | 4.0 | 16.6 | ||||||
| GMA(W)45VSDN | 2.0 | 5.9 | 45 | 2800x1600×1700 | GMW200VSDN | 2.0 | 27.8 | 200 | 4200×2000×2000 |
| 2.5 | 5.3 | 2.5 | 25.3 | ||||||
| 3.0 | 4.7 | 3.0 | 22.8 | ||||||
| 3.5 | 4.14 | 3.5 | 20.35 | ||||||
| 4.0 | 3.57 | 4.0 | 17.9 | ||||||
| GMA(W)55VSDN | 2.0 | 7.6 | 55 | 3200x1700×1800 | GMW220VSDN | 2.0 | 25.7 | 220 | 4500×2100×2200 |
| 2.5 | 6.75 | 2.5 | 24.23 | ||||||
| 3.0 | 6.0 | 3.0 | 22.8 | ||||||
| 3.5 | 5.25 | 3.5 | 21.4 | ||||||
| 4.0 | 4.5 | 4.0 | 20.0 | ||||||
| GMA(W)75VSDN | 2.0 | 9.4 | 75 | 3200x1700×1800 | GMW250VSDN | 2.0 | 33.8 | 250 | 4500×2100×2200 |
| 2.5 | 8.6 | 2.5 | 31.0 | ||||||
| 3.0 | 7.9 | 3.0 | 28.2 | ||||||
| 3.5 | 7.2 | 3.5 | 25.5 | ||||||
| 4.0 | 6.5 | 4.0 | 22.8 | ||||||
| GMW90VSDN | 2.0 | 12.2 | 90 | 3800×1900×1900 | GMW315VSDN | 2.0 | 42.6 | 315 | 5000×2300×2300 |
| 2.5 | 11.15 | 2.5 | 39.1 | ||||||
| 3.0 | 10.0 | 3.0 | 35.5 | ||||||
| 3.5 | 8.9 | 3.5 | 32.1 | ||||||
| 4.0 | 7.84 | 4.0 | 28.7 | ||||||
| GMW110VSDN | 2.0 | 14.7 | 110 | 3800x1900×1900 | GMW355VSDN | 2.0 | 48.0 | 355 | 5000×2300×2300 |
| 2.5 | 13.4 | 2.5 | 44.1 | ||||||
| 3.0 | 12.2 | 3.0 | 40.0 | ||||||
| 3.5 | 11 | 3.5 | 36.2 | ||||||
| 4.0 | 9.7 | 4.0 | 32.4 | ||||||
| GMW132VSDN | 2.0 | 16.72 | 132 | 3800×1900×1900 | GMW400VSDN | 2.0 | 54.6 | 400 | 5500×2350×2300 |
| 2.5 | 15.45 | 2.5 | 50.0 | ||||||
| 3.0 | 14.2 | 3.0 | 45.4 | ||||||
| 3.5 | 13.0 | 3.5 | 40.7 | ||||||
| 4.0 | 11.7 | 4.0 | 36.2 | ||||||
| GMW160VSDN | 2.0 | 20.18 | 160 | 4200x2000×2000 | GMW450VSDN | 2.0 | 61.4 | 450 | 5500x2350×2300 |
| 2.5 | 18.9 | 2.5 | 56.3 | ||||||
| 3.0 | 17.3 | 3.0 | 51.1 | ||||||
| 3.5 | 15.8 | 3.5 | 45.8 | ||||||
| 4.0 | 14.2 | 4.0 | 40.7 | ||||||
| *Our company is committed to continuous product improvement and reserves the right to make design changes. Configuration or parameter changes will not be notified separately. | |||||||||
