Refrigerated dryer

Refrigerated Dryer

Brand: Herborist (UK)

Air Handling Capacity: 17 ~ 400 Nm³/min

Operating Pressure: 0.4~1.3 MPa

Pressure Loss: ≤0.03 MPa

Weight: See catalog

Dimensions: Consult customer service

Brand: Desu


PRODUCT DETAILS

High-efficiency cooling
intelligent protection, gas-liquid separation, intelligent drainage,energy-saving, long lifespan, special design, improved performance,Low Maintenance & Long Service Life,Features a self-cleaning air-to-refrigerant heat exchanger and a durable stainless steel condensate separator, eliminating the need for frequent filter replacements. The sealed refrigeration circuit reduces refrigerant leakage risks, while the automatic drain valve ensures hassle-free condensate disposal—lowering maintenance costs and downtime.

Refrigerated dryer

Advantages of using Desu compressors

Energy-efficient, durable, nationwide service, imported quality

Quality assurance

Factory direct sales, Nationwide 24-hour on-site service, 1-on-1 professional guidance.Space-saving footprint allows easy integration into existing compressed air systems, while the intuitive control panel provides real-time monitoring of dew point, operating pressure, and system status. Visual alarms for filter clogging or refrigerant loss enable proactive maintenance, ensuring uninterrupted operation.

Refrigerated dryer
TECHNICAL PARAMETERS

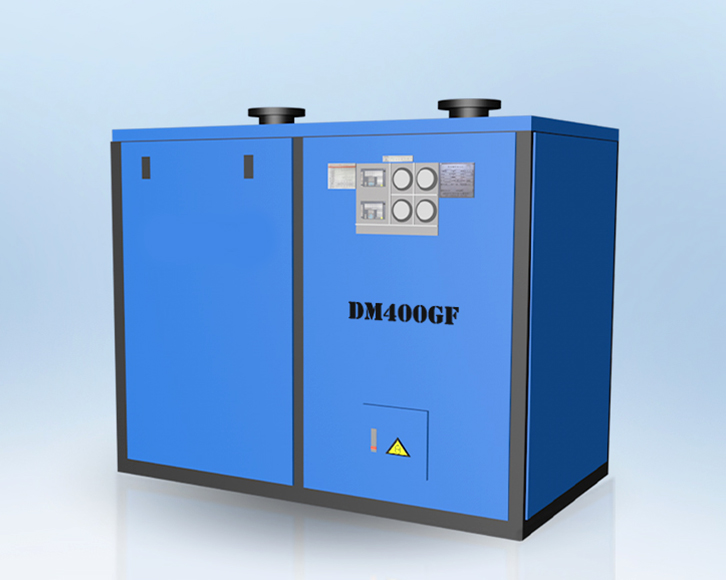

 High-temperature air-cooled refrigerated dryer (DM010~600GF)
 model Compressor power (HP) power supply air handling capacity air intake diameter weight size
 Standard model Standard model Standard model Standard model
 (V/Hz) Nm³min G thread/DN flange (kg) L/W/H
 0.65-15HP
 DM010GF0.65  220/50 1  Rp150  720/375/670
 DM015GF0.85 1.5 60  750/400/700
 DM026GF2.6 80  800/450/730
 DM040GF1.25 4.0  Rp1.5105  800/475/800
 DM065GF1.75 6.5 136  950/500/880
 DM085GF8.5  Rp2165  1060/560/983
 DM110GF11.0 195  1180/630/1092
 DM138GF3.5 13.8 255  1180/670/1092
 DM150GF 385/5017.0  DN65300  1240/670/1188
 DM200GF23.0  DN80385  1420/790/1340
 DM250GF27.0 400  1650/820/1370
 DM300GF35.0 550  1650/820/1370
 DM400GF10 45.0  DN100630  1850/920/1550
 DM500GF12 55.0  DN125680  1980/930/1816
 DM600GF15 65.0 720  1980/930/1816
 High-temperature water-cooled refrigerated dryer (DM150~4000GW)
model Compressor power (HP) power supply air handling capacity Cooling water flow rate Air intake diameter Cooling water inlet and outlet caliber weight size
 Standard model Standard model Standard model Standard model Standard model
 (VHz)  Nm³min Nm³min G thread/DN flange G thread/DN flange (kg) L/W/H

 4-100HP



 DM150GW 380/5017 3.7  DN65 Rp1360  1240/670/1188
 DM200GW23 4.5  DN80420  1420/790/1340
 DM250GW27 550  1420/800/1345
 DM300GW35 7.4  Rp11/2640  1650/820/1370
 DM400GW10 45  DN100730  1850/920/1550
 DM500GW12 55 11  DN125830  1980/920/1816
 DM600GW15 65 12.5  Rp21020  1980/920/1816
 DM800GW20 85 14.5 1600  2480/1350/2070
 DM1000GW25 110 16.5  DN1502400  2480/1440/2070
 DM1200GW30 130 18.5  Rp21/22560  2450/1440/1900
 DM1500GW37 150 21.5  DN2002750  2650/1550/2193
 DM1800GW45 180 24.5 3250  2720/1650/2260
 DM2000GW50 210 36  DN803450  3450/1725/2380
 DM3000GW80 300 48  DN2804250 3800/1980/2580
 DM4000GW100 400 60  DN300 DN1004500  4200/2150/2670
 *Our company is committed to continuous product improvement and reserves the right to make design changes. Configuration or parameter changes will not be notified separately.
