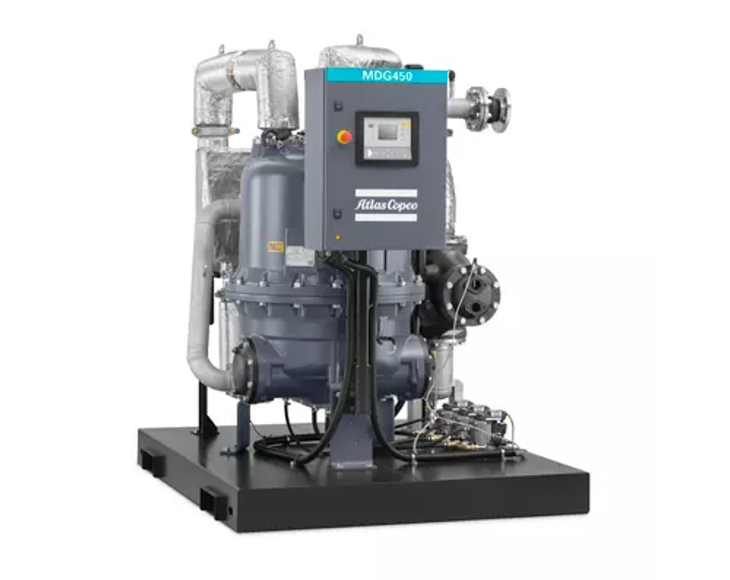

MDG, MD and ND drum dryers can provide cost-effective dry oil-free air. It is particularly suitable for use in food and beverage, power generation, pharmaceuticals and other critical production processes.
High-efficiency and energy-saving rotary drum dryer
The rotary drum compression heat dryer can produce dry air in an energy-saving way. It is highly suitable for use in conjunction with oil-free screw compressors or centrifugal compressors. It regenerates the desiccant by utilizing the heat generated during the compression process. In the double-tower drying technology equipment, this heat is usually wasted. Our drum dryer can prevent the loss of compressed air.
They can achieve a very low dew point with only a small amount of power
The MDG drum dryer has a flow rate of 450l/s, a dew point of -40°C/F and lower temperatures
The flow rate range of the MD drum dryer is 200 to 4000 l/s - the dew point is -25°C/-13°F
The flow rate range of the ND drum dryer is 300 to 4000 l/s - the dew point is -45°C/-49°F
The VSD variable frequency model can be matched with low-energy-consuming VSD oil-free compressors
The MDG compression heat dryer is an outstanding dryer that can stably and reliably provide a pressure dew point (PDP) of -40°C (-40°F) with almost zero power consumption. This equipment has no heating elements, no blowers, and no loss of compressed air (purging). Its total power consumption is less than 120W. Compared with the common adsorption dryers on the market, the operating cost of MDG is close to zero - even when the electricity bill is high.
Technical advantages
Reduce energy costs
The MDG, MD and ND drum dryers adopt a zero air consumption design and will not waste compressed air like the double-tower dryers.
The energy consumption of the MDG drum dryer mainly comes from the drum motor (120W) and the control device, thus making it one of the dryers with very low energy consumption on the market.
Food and beverage standards
Our oil-free compressor factory has passed the ISO 22000 certification. All of our Z series zero-grade oil-free air compressors, as well as related dryers and filters, comply with this food safety management system
The space requirement is very small
Compact and space-saving, especially when compared with oil lubrication systems that require a filtration system
Higher efficiency
The ND drum dryer controller can precisely control the heating power to achieve the required performance. Intelligent and efficient heating.
