Air Oil Separator
1. Filtration Accuracy: 0.1 μm
2. Oil contained in compressed is below 3 ppm
3. Filtration efficiency: 99.9999%
4. Service life is about 4000H-6000H
5. Lnitial pressure differential ≤0.02Mpa

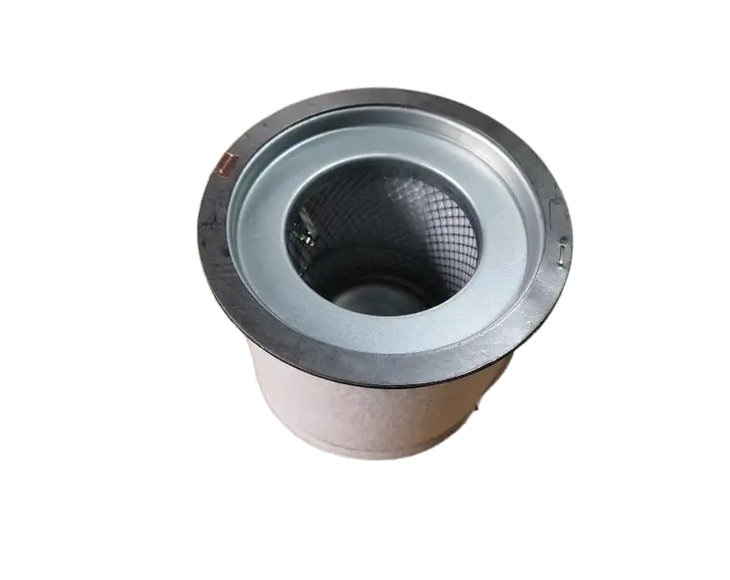

Fiberglass Replacement Ingersoll Rand Air Compressor Spare Parts 54595442 Air Oil Separator
product name | Oil-gas separator |
part number | 54595442 |
Customize | yes |
Accessories | Standard Accessories |
Filter type | folding |
material quality | glass fibre |
principle | adsorption method |
function | High-efficiency filtration |
pattern | cylinder |
place of production | China |
The use of compressed air is now an integral part of every industrial firm. Compressors and vacuum pumps are used in the construction industry, mechanical engineering and in highly sensitive sectors such as the foodstuffs, pharmaceuticals and electrical engineering industries. Qingdao Futai Air Oil Separators are important quality components in the compressed air processing chain. Micro-glass-fibre layers separate drops of oil from the compressed air and return them in large drops to the oil circuit of the compressor. This ensures that oil consumption in the compressors and oil entrainment into the compressed air networks are kept to a minimum.
More Products for Choos
Product Name | Original Part Number | Atlas · Kopco Part Number | Applicable models |
Oil filter element | 54672654 | 3003114815 | UP5 |
oil separator core | 54749247 | 3003128010 | UP5 |
air filter element | 89295976 | 3003102405 | UP5 |
air filter element | 22203095 | 3003119405 | IR37PE |
air filter element | 39708466 | 3003102505 | M37-M45 |
Oil filter element | 39911615 | 3003102015 | M37-M45 |
oil separator core | 22089551 | 3003149910 | M37-M45 |
Oil filter element | 39911631 | 3003101915 | M55-M75 |
oil separator core | 54601513/39894597 | 3003179610 | M55-M75 |
air filter element | 39903281 | 3003214705 | M90-M110 |
oil separator core | 54509427 | 3003101110 | M90-M110 |
oil separator core | 22219174/54509500 | 3003101010 | M200-M250 |
Oil filter element | 92888262 | 3003101815 | M200-M250 |
air filter element | 39903265 | 3003213905 | M200-M250 |
oil separator core | 54509435 | 3003145610 | M300-M350 |
PDM filter cartridge | 54721329 | 3003208805 | IRN37-45 |
air filter element | 54672522 | 3003175105 | IRN37-45 |
oil separator core | 38008579 | 3003148410 | IRN37-45 |
air filter element | 54672530 | 3003213205 | IRN55-75 |
oil separator core | 38008587 | 3003150210 | IRN55-75 |
Oil filter element | 39911631 | 3003101915 | IRN90-110 |
air filter element | 22130223 | 3003152380 | IRN90-110 |
Heavy-duty main air filter element | 22100903 | 3003105005 | IRN90-110 |
Heavy-duty secondary air filter element | 22100911 | 3003123505 | IRN90-110 |
Impeller bolts | 68156199 | 3003980885 | Centac centrifuge |
Product Name | Original Part Number | Atlas Copco Part Number | Applicable models |
Impeller bolts | 68156181 | 3003980985 | Centac centrifuge |
Impeller bolts | 68063973 | 3003981085 | Centac centrifuge |
Thrust bolt | 67647099 | 3003981185 | Centac centrifuge |
Seals | 67690057 | 3003981285 | Centac centrifuge |
Thrust bearing | 68157064 | 3003981585 | Centac centrifuge |
Thrust bearing | 68157056 | 3003981685 | Centac centrifuge |
Oil mist lubricator | 43083427 | 3003981785 | Centac centrifuge |
Level 2 gas seal | 3×10¹⁸⁵ | 3003163455 | Centac centrifuge |
Level 3 gas seal | 3×10¹⁸⁶ | 3003165055 | Centac centrifuge |
Level 2 oil seal | 3×10¹⁸³ | 3003163555 | Centac centrifuge |
Level 3 oil seal | 3x10184 | 3003164455 | Centac centrifuge |
Gold Oil | 1×35894 | 3003106120 | Centac centrifuge |
Super coolant (5 gallons/drum) | 39433735 | 3003100220 | Ingersoll Rand screw compressor general purpose |
Super coolant (55 gallons/drum) | 39433743 | 3003102020 | Ingersoll Rand screw compressor general purpose |
motor bushing | 89292460 | 3003903880 | M90-M110 |
shaft seal | 89244024 | 3003903780 | M90-M110 |
Temperature sensor | 85652535 | 3003300185 | M90-M110 |
pressure sensor | 39875539 | 3003173185 | M90-M110 |
Oil filter differential pressure sensor | 39244512 | 3003845585 | M90-M110 |
Thermostatic valve | 39902374/54702212 | 3003147985 | M55-M75 |
Temperature control valve core 400-500HP | 39207402 | 3003845485 | M300-M350 |
Temperature control valve core | 39437645 | 3003166985 | M90-M110 |
Exhaust temperature switch 123 degrees | 39419668/37952264 | 3003163885 | M90-M110 |
Oil cut-off solenoid valves N1/N4 | 39318233/22173629 | 3003354285 | M132-M160 |
Minimum pressure valve | 39801253/85547289 | 3003846385 | M300-M350 |
