AIR COMPRESSOR
& PIPES LEADER
& PIPES LEADER
The compressor filter system is composed of air filter, air oil separator and oil filter.
Each part is equally important, because the strength of the entire filtering system depends on the weakest part.
Air filters are at the forefront of this defense system.
Our high quality air filters protect lubricants, air oil separators, oil filters and the entire compressor from dust and particulate pollution by the intake air.

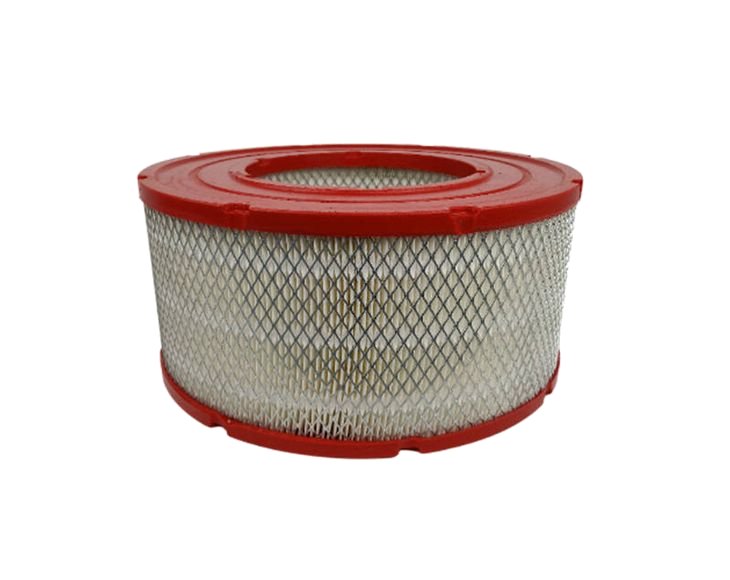

Screw Air Compressor Spare Parts OEM Ingersoll Rand 39903265 Air Filter
product name | air filter |
part number (PN) | 39903265 |
Custom Processing | yes |
Accessory type | Standard Accessories |
filter cartridge type | folding |
material quality | filter paper |
principle | Adsorption method |
function | High-efficiency filtration |
pattern | cylinder |
place of production | China |
Adopt anticorrosion efficient condensation of superfine fiber material as the main body, filter the system filter filter bed combination prediction filter layer, superfine fiber layer, support layer, filter layer and gravity sedimentation, etc, make the compressor output above 3 microns of solid particles in the air can filter out, all is the extremely small mu is about 0.01-1 m of the disintegration of oil and gas dissolved in through the filter is condensed into larger droplets, accumulate in the bottom of the filter, again through the return pipe of siphon filter at the bottom of the sunken place back to lubrication system so that the compressor discharge more pure and oil-free compressed air.
More Products for Choose
| Product Name | Original factory reference part number | Atlas Copco Part Number | Applicable models |
| Oil filter element | 54672654 | 3003114815 | UP5 |
| Oil separator core | 54749247 | 3003128010 | UP5 |
| Air filter element | 89295976 | 3003102405 | UP5 |
| Air filter element | 22203095 | 3003119405 | IR37PE |
| Air filter element | 39708466 | 3003102505 | M37-M45 |
| Oil filter element | 39911615 | 3003102015 | M37-M45 |
| Oil separator core | 22089551 | 3003149910 | M37-M45 |
| Oil filter element | 39911631 | 3003101915 | M55-M75 |
| Oil separation core | 54601513/39894597 | 3003179610 | M55-M75 |
| Air filter element | 39903281 | 3003214705 | M90-M110 |
| Oil separation core | 54509427 | 3003101110 | M90-M110 |
| Oil separation core | 22219174/54509500 | 3003101010 | M200-M250 |
| Oil filter element | 92888262 | 3003101815 | M200-M250 |
| Air filter element | 39903265 | 3003213905 | M200-M250 |
| Oil separation core | 54509435 | 3003145610 | M300-M350 |
| PDM filter element | 54721329 | 3003208805 | IRN37-45 |
| Air filter element | 54672522 | 3003175105 | IRN37-45 |
| Oil separation core | 38008579 | 3003148410 | IRN37-45 |
| Air filter element | 54672530 | 3003213205 | IRN55-75 |
| Oil separation core | 38008587 | 3003150210 | IRN55-75 |
| Oil filter element | 39911631 | 3003101915 | IRN90-110 |
| Air filter element | 22130223 | 3003152380 | IRN90-110 |
| Replace the main air filter element | 22100903 | 3003105005 | IRN90-110 |
| Replace the secondary air filter element | 22100911 | 3003123505 | IRN90-110 |
| Impeller bolt | 68156199 | 3003980885 | Centac Centrifuge |
